    Description

    DESCRIPTION

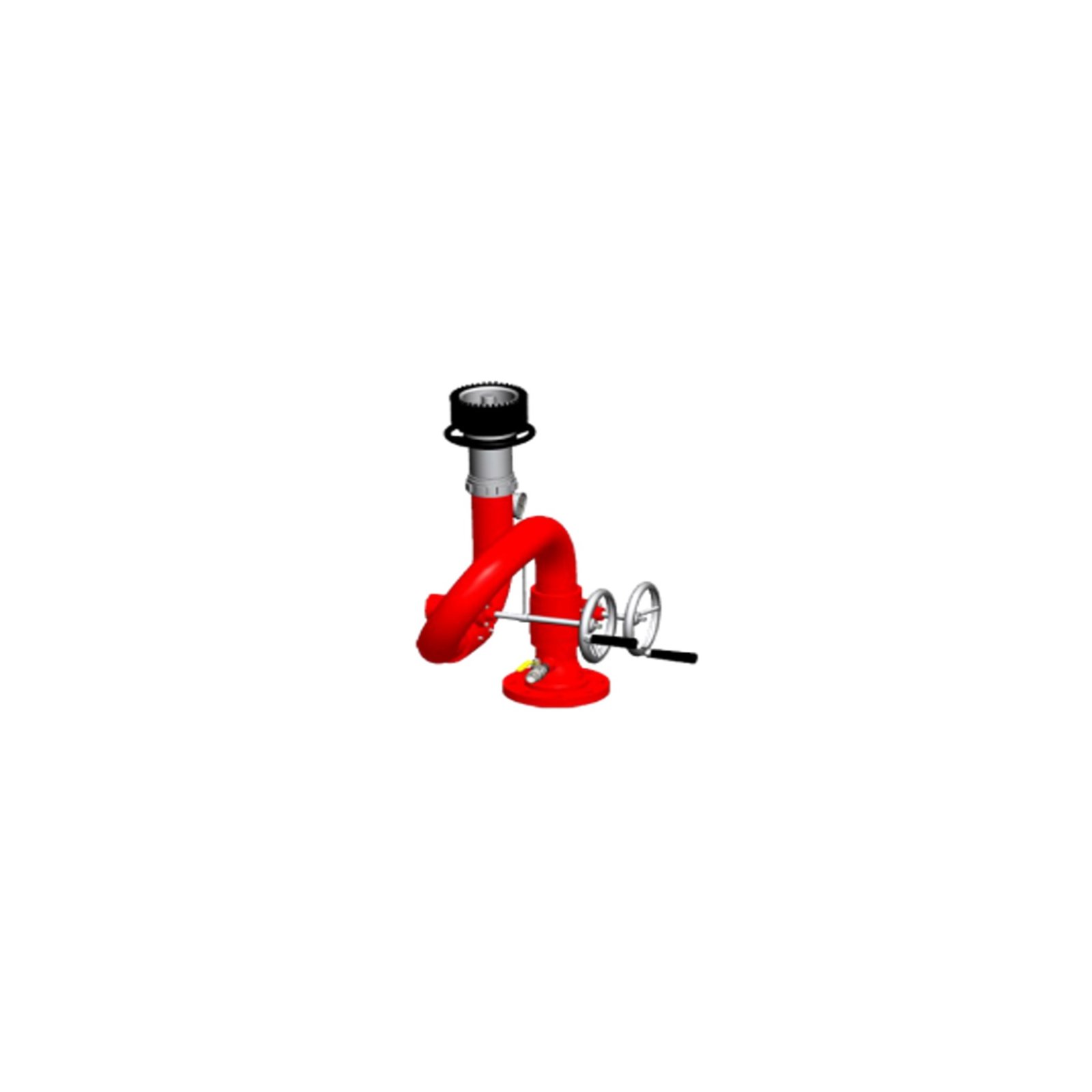

    AAAG monitors are durable units suitable for Industrial fire  protection.  It can be used for fixed installation as well as for trailer mounting. These monitors have a flow rate of 3500 LPM at 7 Bar.

    Model AAAG M 100G
    Material Carbon Steel
    Maximum Operating Pressure 14 Bar (203 psi)
    Flow rate 3500 LPM @ 7Bar
    Throw Range 64 Meters
    Inlet Flange 100 NB (4”) Raised Flange ANSI B 16.5 150 #
    Monitor Outlet 100 NB (4”) Water way , Jet Nozzle
    Optional :  Jet – Spray Nozzle
    Monitor Movement Vertical   Movement – Manual Swivel Operation With Lock
    Horizontal Movement – Manual Swivel Operation With Lock
    Hydrostatic Test Pressure 25 Bar
    Monitor Rotation 3600 continuous
    Monitor Elevation +900 above horizontal
    -450 below horizontal
    Finish Red Polyurethane

    MAKE AAAG
