    Description

    DESCRIPTON

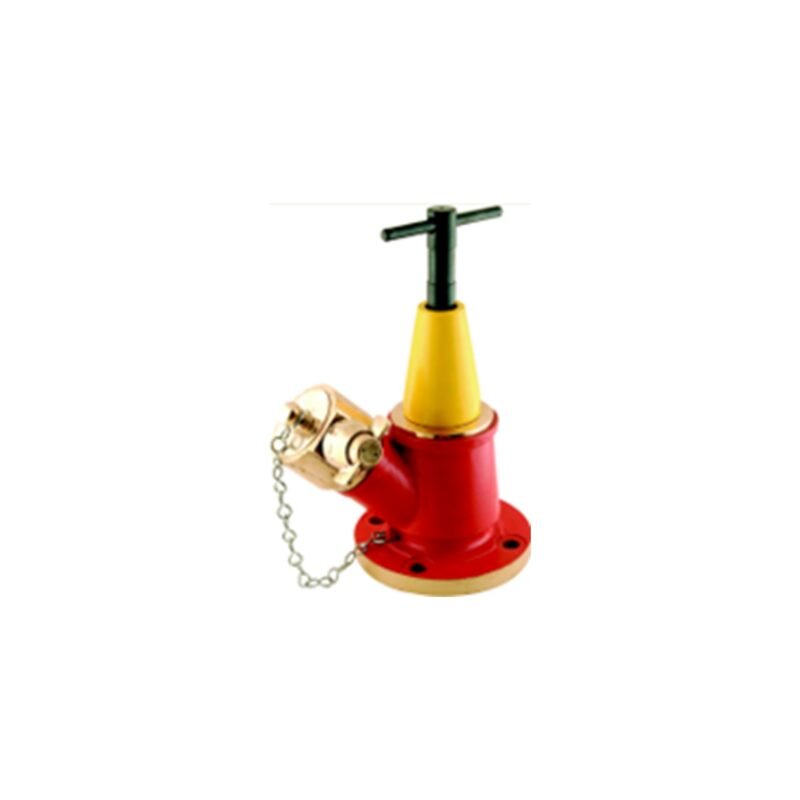

    AAAG Lock Shield Landing Valve is usually installed in Fire Hydrant System  where unauthorized operation has to be avoided. Landing Valves are referred as Internal Hydrants since they are fitted inside the building along with wet hydrant system.

    Model AAAG 110
    Valve Body Gun Metal – IS : 318 LTB-2
    Optional : Stainless Steel –
    IS :3444Gr.I or IS: 3444 Gr. IV
    Hand Wheel Cast Iron
    Test Pressure 23 Bar
    Inlet Flange 75 NB (3”) , ANSI B 16.5 150 #
    Inlet Waterway 63 mm
    Optional : 50 mm / 38 mm
    Outlet 63mm Female Instantaneous – Standard
    Finish Red Polyurethane
    MAKE AAAG
