    Description

    DESCRIPTION

    Hydrant valves (also called Landing valves) provide the means to draw water for firefighting from the Fire water piping network. They are normally mounted onto dry/wet risers or on stand posts fitted on the fire water network.

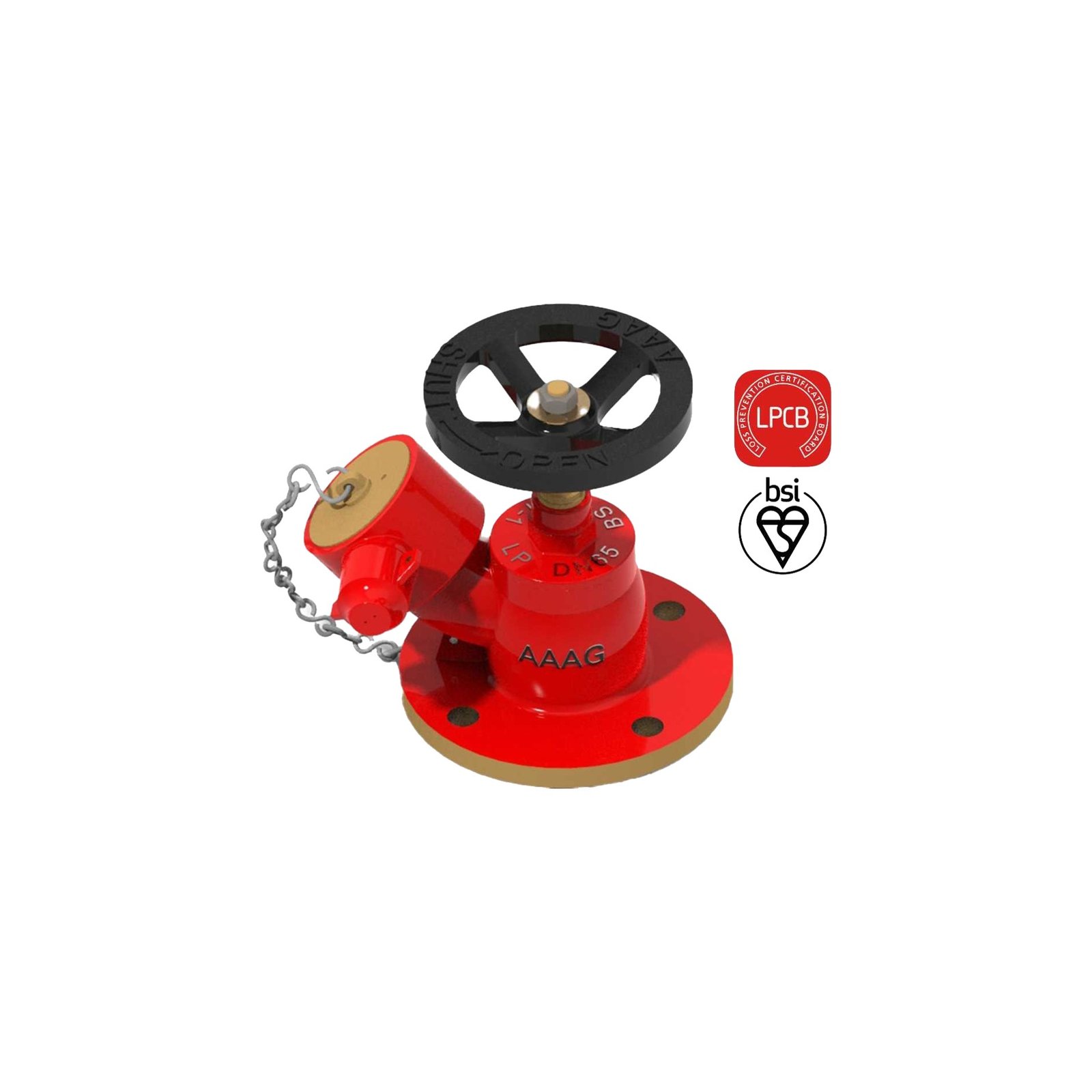

    Brief Description: AAAG Hydrant Valve, Oblique Type, LPCB Approved, Low Pressure, as per BS:5041-Part 1, made of Bronze, having 2.5” (65 mm) flanged inlet, and 2.5” Female Instantaneous outlet, with handwheel for operation, complete with blank cap and chain. H.P. tested to 22.5 bar (body) and 16.5 bar (seat) for 2 minutes. Flow 510 lpm (min) at 4.7 bar.

    GENERAL DATA
    Make AAAG
    Size 2½” (65 mm)
    Inlet Flanged 2½” NB, BS:10 (ANSI B 16.5 150 # optional)
    Outlet 2½” (65 mm) Female Inst. Adaptor
    Reference Standard BS:5041-1/BS:336
    MATERIAL OF CONSTRUCTION
    Body, Bonnets and parts Bronze BS:1400 LG2
    Spindle Brass BS:2874
    Spring Phosphor Bronze Wire
    Hand Wheel Cast Iron, BS:1452
    Washer Rubber, BS:1154
    TESTING AND QUALITY CONTROL
    Dimensional check Dimensions as per Drawing (See below)
    Pressure retention (Seat) Test 16.5 bar for 2 minutes.
    Pressure Retention (Body) Test 22.5 bar for 2 minutes.
    Performance requirements Flow test: 510 lpm (min) at 4.7 bar
    Documentation Internal inspection report, supplier’s certificates, approved laboratory test certificates
    OPERATIONAL/ TECHNICAL DATA
    Working pressure range up to 15 bar
    Weight (approx.) 7.5 Kgs.
    FINISH
    Body Painted – Fire Red Color
    Wheel Painted – Black Color
    Parts Polished
    APPROVALS & MARKING
    Approvals
    Marking on Hydrant valve AAAG/ Size/ Year of Manufacture/ LPCB Mark/ SI No
    WARRANTY
    Warranty & Guarantee 12 Months from the date of supply

    MAKE AAAG
