    Description

    DISCRIPTION

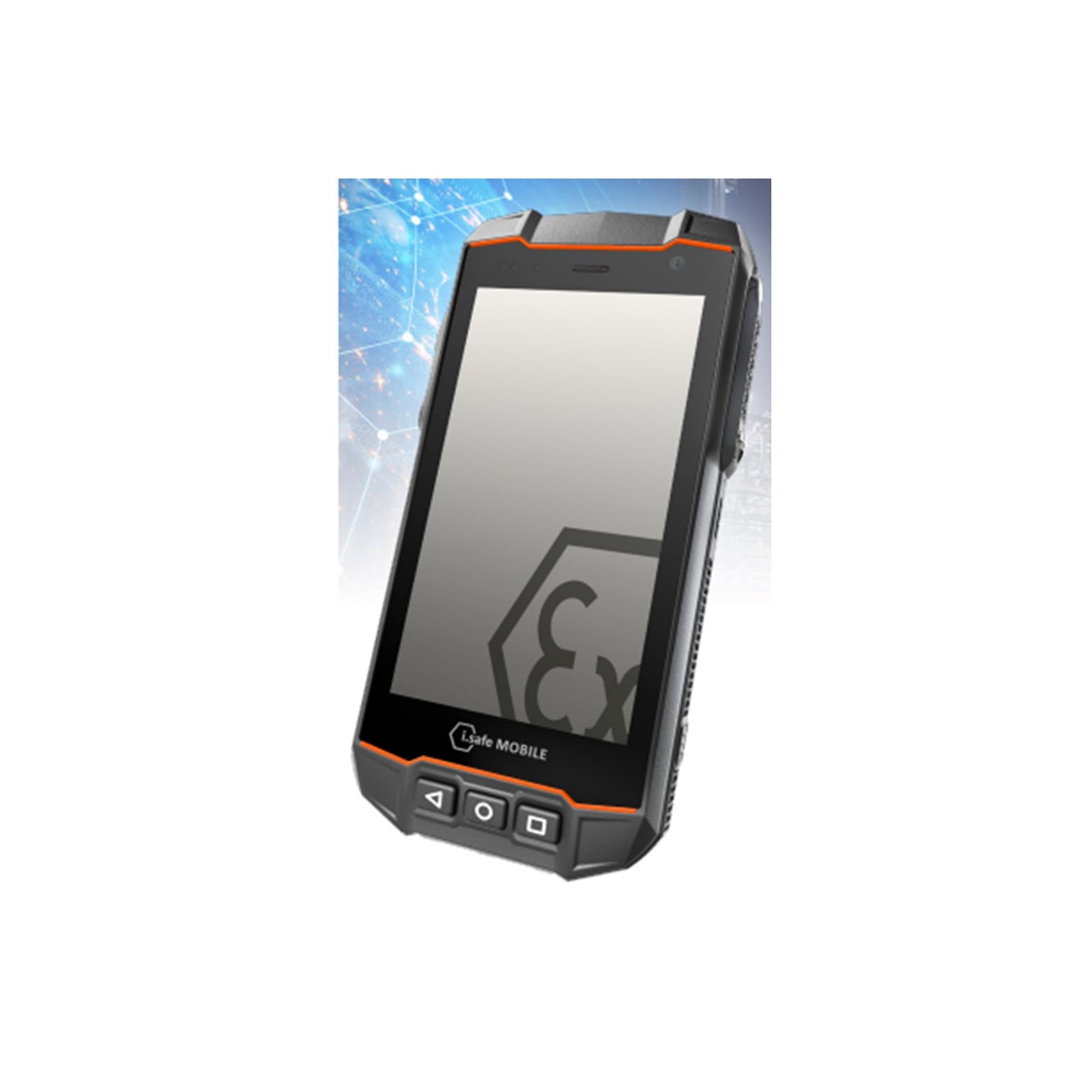

    The high-performance industrial smartphone can be used in a variety of ways
    thanks to the ISM interface. Additional modules such as an RSM, PTT headsets, the
    professional IS-TH1xx.1 barcode scanner and the thermal camera IS-TC1A.1 make
    the IS530.1 a high-performance multifunctional device. The smartphone is Android
    Enterprise Recommended, zero-touch capable and MDM compatible.

    TECHNICAL FEATURES

    Operating system Android™ 13
    Processor SDM660 Octa-Core (Kryo Gold-Quad cores 2,2 GHz; Kryo Silver-Quad cores 1,8 GHz)
    Memory 4 GB RAM | 64 GB internal memory | microSD memory up to 128 GB
    Frequencies 2G GSM: 850/900/1800/1900 MHz
    3G WCDMA: UMTS B1/2/4/5/8
    4G LTE-FDD: B1/2/3/4/5/7/8/12 with MFBI B13/14/17/20/25/26/28A/28B/29/30/66
    4G LTE-TDD: B38/B39/B40/B41
    4G LTE-SCDMA: B34/B39
    Dimensions size: 155 x 80 x 25 mm | weight: 325 g
    Display 4,5“ Gorilla Glass® 3. generation | 854 x 480 pixels
    Battery 3600 mAh, 3,8 V, 13,68 Wh | replaceable
    Camera 13 MP AF rear camera | 5 MP FF front camera
    Connections WiFi 2,4 GHz + 5 GHz: IEEE 802.11 a/b/g/n/ac/e/k/r/h with max. 8 connections hotspot
    Bluetooth® 5
    GPS, A-GPS, Glonass, Beidou, Galileo
    Near Field Communication
    Types of protection IP68 dust-/waterproof | MIL-STD-810G | usable from -20 °C to +60 °C

    SOS key for loneworker protection
    LWP ready (third party application required,
    based on country specific regulations)Dual micro-SIM

    Magnetic charger port

    13-pin ISM interface for a quick and safe
    connection of additional devices for a
    wide range of applications

    Amplified loudspeaker

    Accelerometer, gyroscope, lig

    STANDARDS

    ATEX approval: EX-Zone 1/21
    II 2G Ex ib IIC T4 Gb
    II 2D Ex ib IIIC T135°C Db IP6X

    IECEx approval: EX-Zone 1/21
    Ex ib IIC T4 Gb
    Ex ib IIIC T135°C Db IP6X

    NEC500 approval:
    Class I, II, III Division 1
    Groups A B C D E F G T4

    EAC approval:
    1Ex ib IIC T4 Gb X
    Ex ib IIIC T135°C Db X IP64
