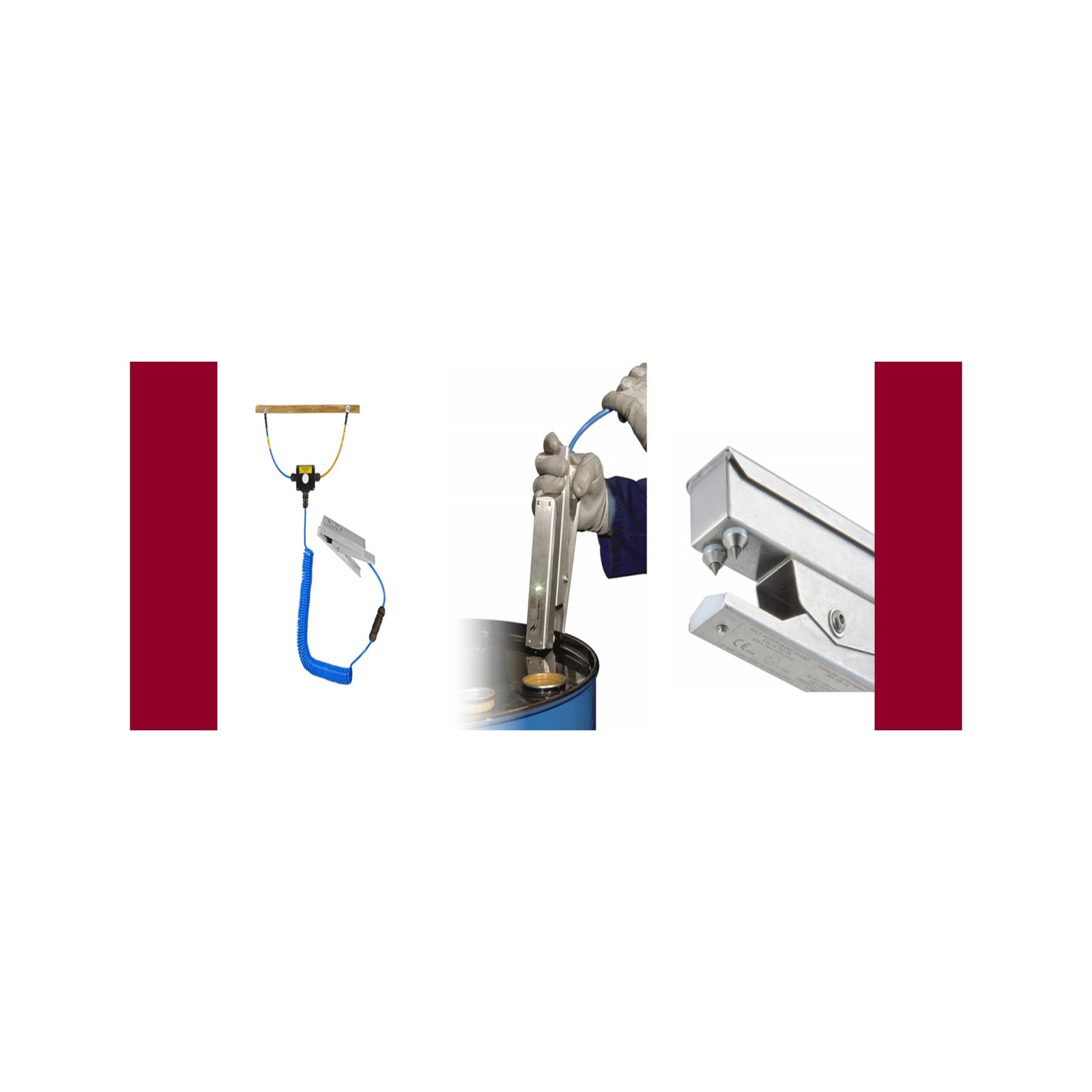

Bond-Rite® Earth Bonding CLAMP Earth Bonding Clamp: Self testing clamps with visual indication and monitoring
SHIPPING
- Complimentary ground shipping within 1 to 7 business days
- In-store collection available within 1 to 7 business days
- Next-day and Express delivery options also available
- Purchases are delivered in an orange box tied with a Bolduc ribbon, with the exception of certain items
- See the delivery FAQs for details on shipping methods, costs and delivery times
RETURNS AND EXCHANGES
- Easy and complimentary, within 14 days
- See conditions and procedure in our return FAQs
Have a question?
Description
DESCRIPTION
Bond-Rite Earth Bonding Clamp provides operators with a 10 ohms or less connection to a verified earth. This 10 ohm or less connection is indicated via a continuously flashing green LED indicator.
Equipment specifiers have the option of specifying an LED indicator mounted earthing clamp or utilising a wall mounted indicator station.
The Bond-Rite CLAMP continuously monitors the resistance between the object requiring static earthing protection and the site verified earth for the duration of the operation.
Operators are unable to confirm a good earth connection before the process begins if using a simple grounding clamp and cable assembly.
Earth bonding clamp systems with visual indication (high intensity flashing Green LED) are intrinsically safe (Ex ia) and monitor the resistance between the equipment that they are attached to and the true earth ground connection (or they can bond metal plant items together such as drums, IBCs or tank trucks).
This provides the operator and their colleagues with confidence that the process is reliably grounded and continuously monitored to 10 Ohms (or less) before the process starts.
MAKE NEWSON GALE
